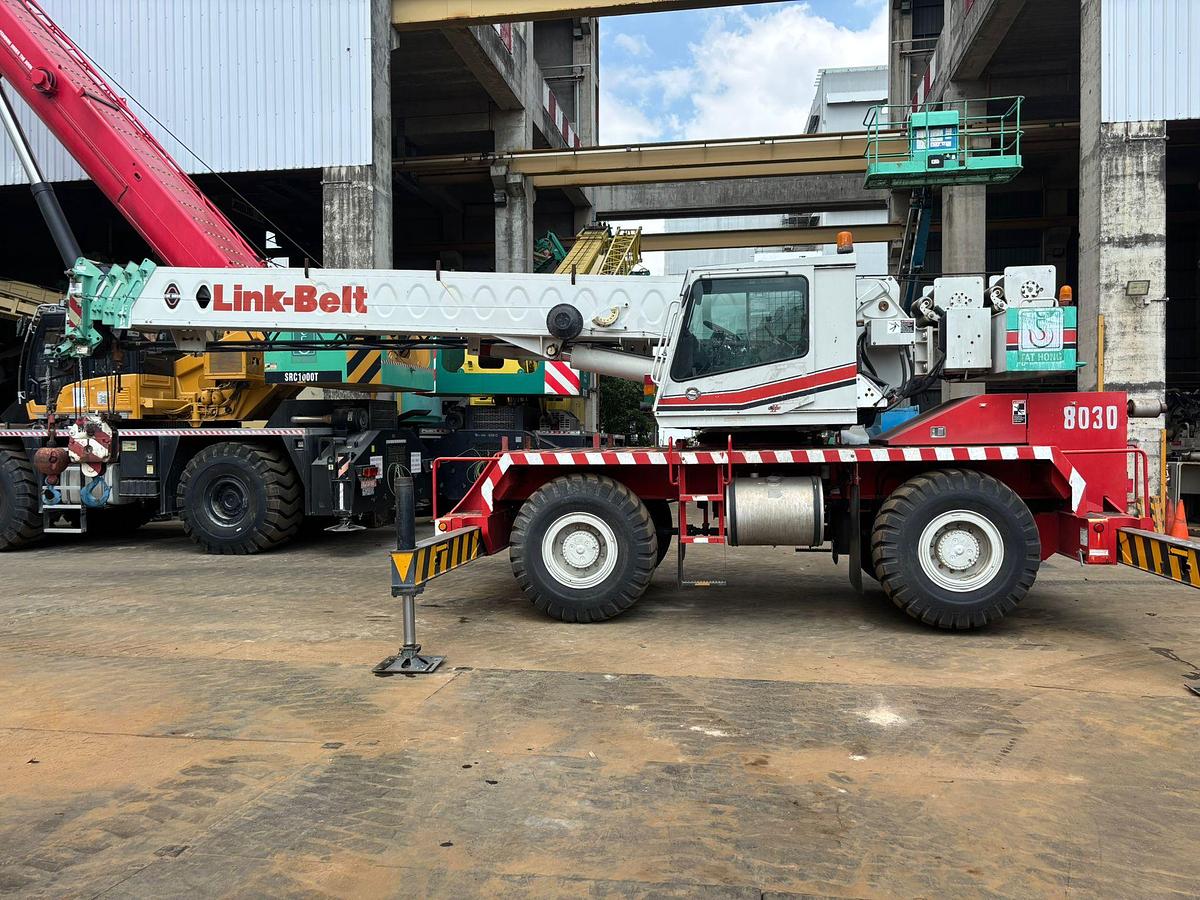

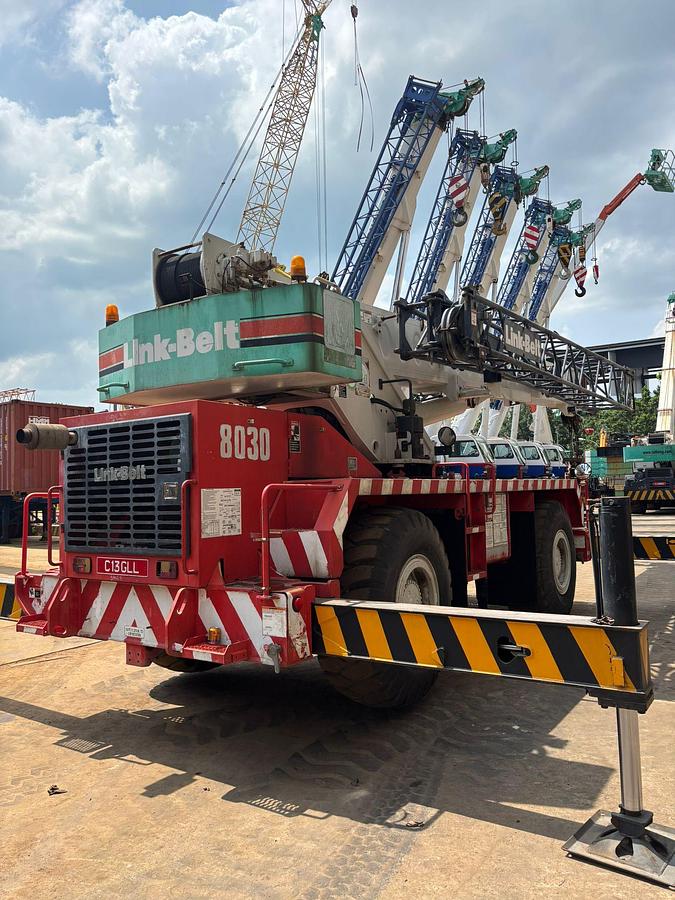

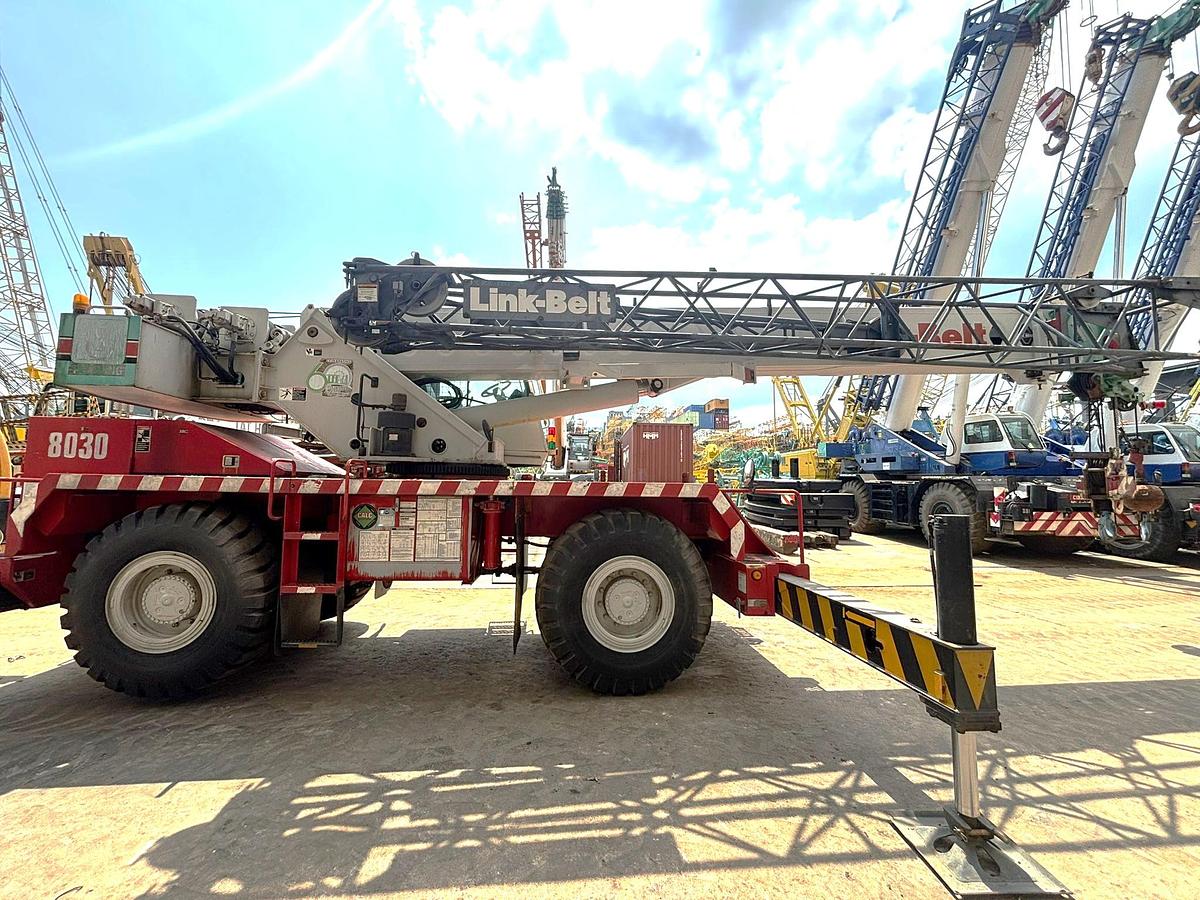

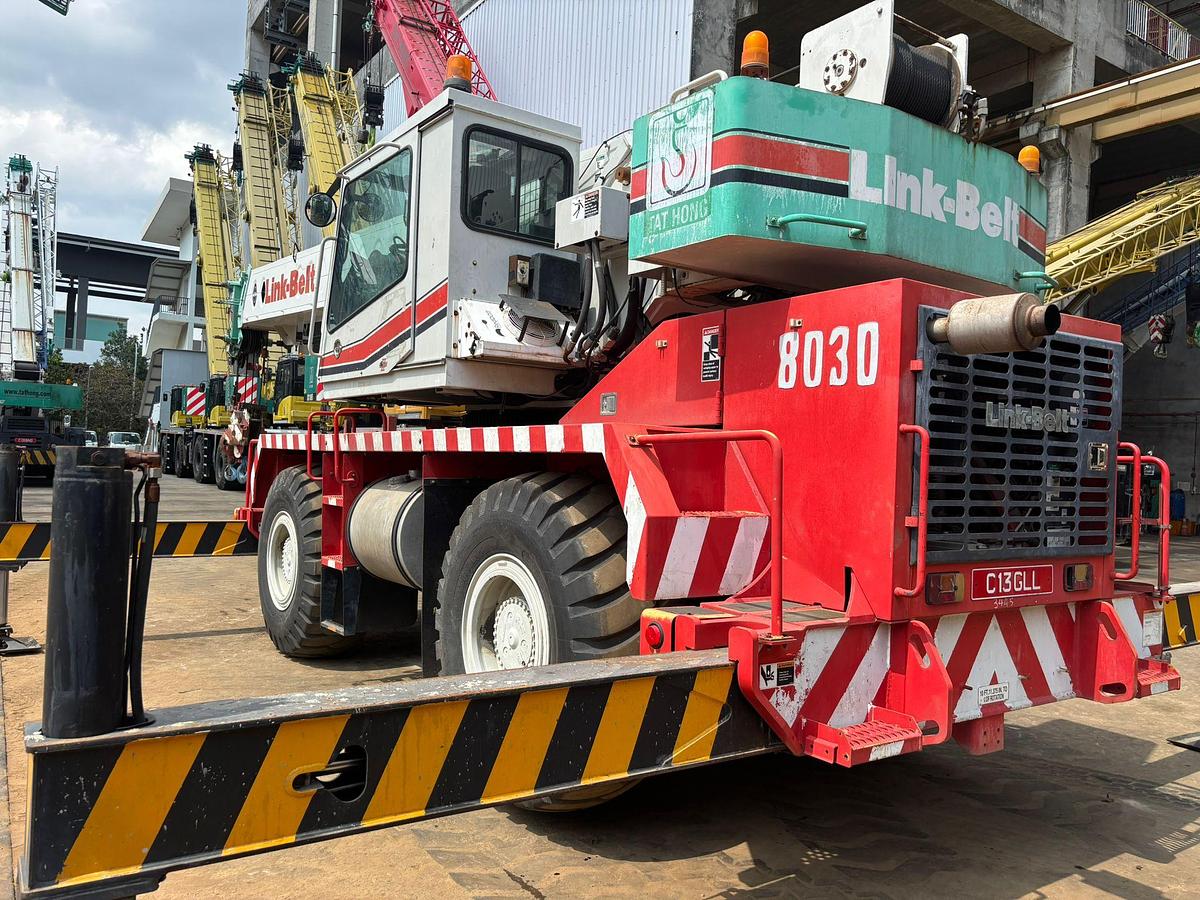

30 Ton Used AS IS Condition RTC8030-II Rough Terrain Crane ~ $$ HOT SALE 04.04 $$

Carrier

Type

8' 6" (2.59 m) wide, 11' 5" (3.48 m)

wheelbase.

4 x 4 x 4 — (4-wheel steer, 4-wheel

drive) — For rough terrain with limited

turning area.

Frame — 100,000 p.s.i. (689.5 MPa)

steel, double walled construction with

integral 100,000 p.s.i. (689.5 MPa) steel

outrigger boxes.

Axles

Front- Heavy duty planetary drive/steer

type.

Rear- Heavy duty planetary drive/steer

type.

Suspension

Front axle - Rigid mounted to frame.

Rear axle - Fully independent 4-Link.

Automatic axle oscillation lockout

cylinders engage when upperstructure

rotates past 2-1/2° of centerline.

Tires

Front and Rear

Standard — 20.5 x 25 (24-PR)

Earthmover type.

Brakes

Service — Fully hydraulic disc-type

brakes at each wheel end with independent

front and rear system.

Parking/emergency — Spring applied,

hydraulic released, cab controlled, disctype

integral to the transmission.

Steering

Hydraulic front-wheel, four-wheel and

“crab” steering: modes selected by toggle

switch on dash. All modes fully controlled

by steering wheel.

Transmission

Clark three-speed two range power shift

transmission. Six speeds available

forward and two reverse. Front axle

disconnect for two or four-wheel drive.

Outriggers

Three position (fully extended, intermediate,

and fully retracted) operation

capability. Four hydraulic, telescoping

beam and jack outriggers. Vertical jack

cylinders equipped with integral holding

valve. Beams extend to 19' 6" (5.94 m)

centerline-to-centerline and retract to

within 8' 6" (2.59 m) overall width.

Equipped with stowable, lightweight 18.5"

(0.47 m) diameter aluminum floats. Dash

mounted controls and sight level bubble

located in upperstructure cab.

Confined Area Lifting Capacities

(CALCTM) System - Outriggers may be

extended to an intermediate position

13' 8" (4.17 m) for working in confined

areas. In addition, capacities are available

with the beams in the 7' 10" (2.39

m) fully retracted position. When the

outrigger position levers (located on the

outrigger boxes) are engaged, the

operator can set the crane in the

intermediate or fully retracted outrigger

position without having to leave the cab.
